Visualizing the reliability evaluation of automotive electronic components in a "high-temperature environment"
Do you encounter any of these issues when evaluating automotive electronic components?
- Want to know the temperature of parts in real time during high-temperature testing
- Contact sensors cannot detect temperature distribution
- Visualizing the heat generation status inside a thermostatic chamber
- I want to obtain evaluation data that meets AEC standard testing requirements.
When evaluating the reliability of automotive electronic components, it is important to detect heat generation behavior and hot spots in high-temperature environments.
thermal image measurement, which can measure temperature distribution over a wide range without contact, contribute greatly to the efficiency of quality evaluation.
Solution Overview

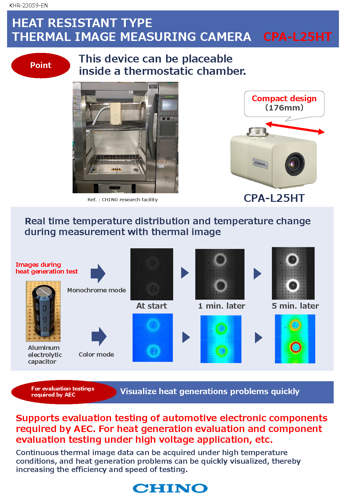

Heat-resistant thermal image measurement CPA-L25HT
The CPA-L25HT is a heat-resistant thermal image measurement that can be installed and used inside a thermostatic chamber.
Main features
- Temperature measurement range: 0 to 300°C
- Ambient temperature: Maximum 200°C (when using a heat-resistant case)
- Resolution: 320 x 240 pixel
- high-speed frame rate up to 60Hz
High-resolution thermal images allow for real-time visualization of minute temperature distribution and instantaneous heat generation in electronic components.
Three scenarios where you can see the benefits of implementing the system
① Evaluation of electronic components in a high-temperature thermostatic chamber
By placing it in a temperature chamber, it is possible to measure the temperature distribution in real time when parts are exposed to a high-temperature environment.
It enables temperature distribution analyzing across the entire surface, which is difficult to do with contact sensors.
② Reliability evaluation through heat generation analyzing
high-speed frame rate of 60Hz enables continuous recording of the transient heat generation behavior of electronic components.
By analyzing time changes
- Temperature rising trend
- Timing of abnormal fever occurrence
- Hotspot Location
You can understand the following:
③ Aluminum electrolytic capacitor reverse voltage test
In reverse voltage testing, changes in temperature distribution after energization is applied can be visualized in real time.
for example
- Fever distribution after 1 minute
- Temperature diffusion after 5 minutes
- Maximum Temperature Rise
Recording these will help you analyzing the heat generation origin and degradation mechanism.
Four reasons to choose the CPA-L25HT
-
Stable measurement even in high temperature environments
The heat-resistant case can withstand a temperature chamber environment of up to 200°C.
-
Surface temperature monitoring
Able to measure a wide range of temperature distribution at once
-
Real-time analyzing of heat generation behavior
Instantaneous heat generation visualized with 60Hz high-speed imaging
-
Improving reliability testing efficiency
Can be used for AEC standard evaluation and quality analyzing data acquisition
Recommended for the following uses
- AEC reliability testing of automotive electronic components
- Heat generation analyzing of power supply circuits and semiconductors
- Battery control circuit evaluation
- In-vehicle camera and radar evaluation
Summary
When evaluating the reliability of automotive electronic components, it is important to accurately understand their heat generation behavior in high-temperature environments.
By using the heat-resistant thermal image measurement CPA-L25HT, the temperature distribution inside the thermostatic chamber can be visualized in real time, enabling early detection of defects and efficient product improvement.
As the performance of in-vehicle electronic devices continues to improve, it is expected that temperature measurement technology in high-temperature environments will become even more important.
Application documents (please contact us for details)
Information on the heat-resistant thermal image measurement CPA-L25HT
