What is control? It's a concept for approaching a target value and maintaining a stable state.

1. What is control?

Control is the concept of minimizing the difference between the "goal" and the "current state."

control is the process of adjusting the state of a particular object to meet a specific purpose. These objects can vary widely, including temperature, humidity, pressure, flow rate, velocity, position, and brightness.

For example, think of bathwater. On a cold winter day, even water that has been heated to a comfortable temperature will cool down over time. So, we adjust the temperature by adding more water or reheating it as it drops. This is an example that is similar to manual temperature control.

Thus, the basic principle of control is to identify the difference between the target and the current state, and then make adjustments to minimize that difference.

There is control in our daily lives as well.

The latest hot water systems constantly measure the temperature of the water and automatically adjust when it detects a difference from the set temperature. The air conditioner also measures room temperature and adjusts operation to get close to the set temperature. Things like rice cookers, refrigerators, car speed adjustments, and elevator stop positions are, in a broad sense, based on the concept of control.

The word "control" may sound a bit technical, but the functions of "bringing things closer to a desired state" and "maintaining that state" are common in everyday life.

In industrial settings, control are crucial to quality.

In factories and research facilities, even slight changes in conditions such as temperature and pressure can affect product quality and test results. Maintaining stable conditions and repeatability is especially crucial in fields such as heat treatment, semiconductor manufacturing, food processing, pharmaceuticals, and electronic components.

Therefore, in industrial applications, control technologies are required to quickly approach the target state without waste and maintain it as stable as possible. Chino provides technology that combines temperature measurement, control, monitoring, and calibration in fields requiring precise temperature control, such as industrial products and pharmaceutical manufacturing sites.

2. Basic elements of control

Control becomes easier to understand if you think of it in terms of a process: measure, compare, judge, operation, and check the result.

3. Manual control and automatic control

Manual control is operation by a person who sees it.

operation such as reheating bathwater when it cools down, or adjusting the heat of a pot while monitoring the flame, are similar to manual control. A person observes the situation and operation as needed.

Manual control allows for flexible decision-making based on the situation, but it requires constant human monitoring. It has limitations when conditions change rapidly or when long-term stability is required.

Automatic control means the equipment adjusts based on measured values.

In automatic control, sensors and other devices measure the current state and automatically operation the device based on the difference from target values. Just as the air conditioner switches operation by measuring room temperature, heating and cooling are adjusted while monitoring the current temperature at the factory control.

Automatic control makes it easier to maintain a consistent state without constant human operation. This leads to reduced quality variations, labor savings, and improved safety.

4. What is feedback control?

Adjust while observing the current state.

Feedback control This is a control method that measures the results of control and reflects those results in the next operation. First, the current state is measured, and the difference between the target value and the measured value is confirmed. Based on that difference, the operation amount is determined, and the state after operation is measured again.

In terms of temperature control, this approach involves adjusting the heater output while monitoring the difference between the set temperature and the current temperature. If the current temperature is low, the heating is increased; as it approaches the target temperature, the heating is reduced, and so on, adjusting according to the situation.

It is also important not to exceed the target value too much.

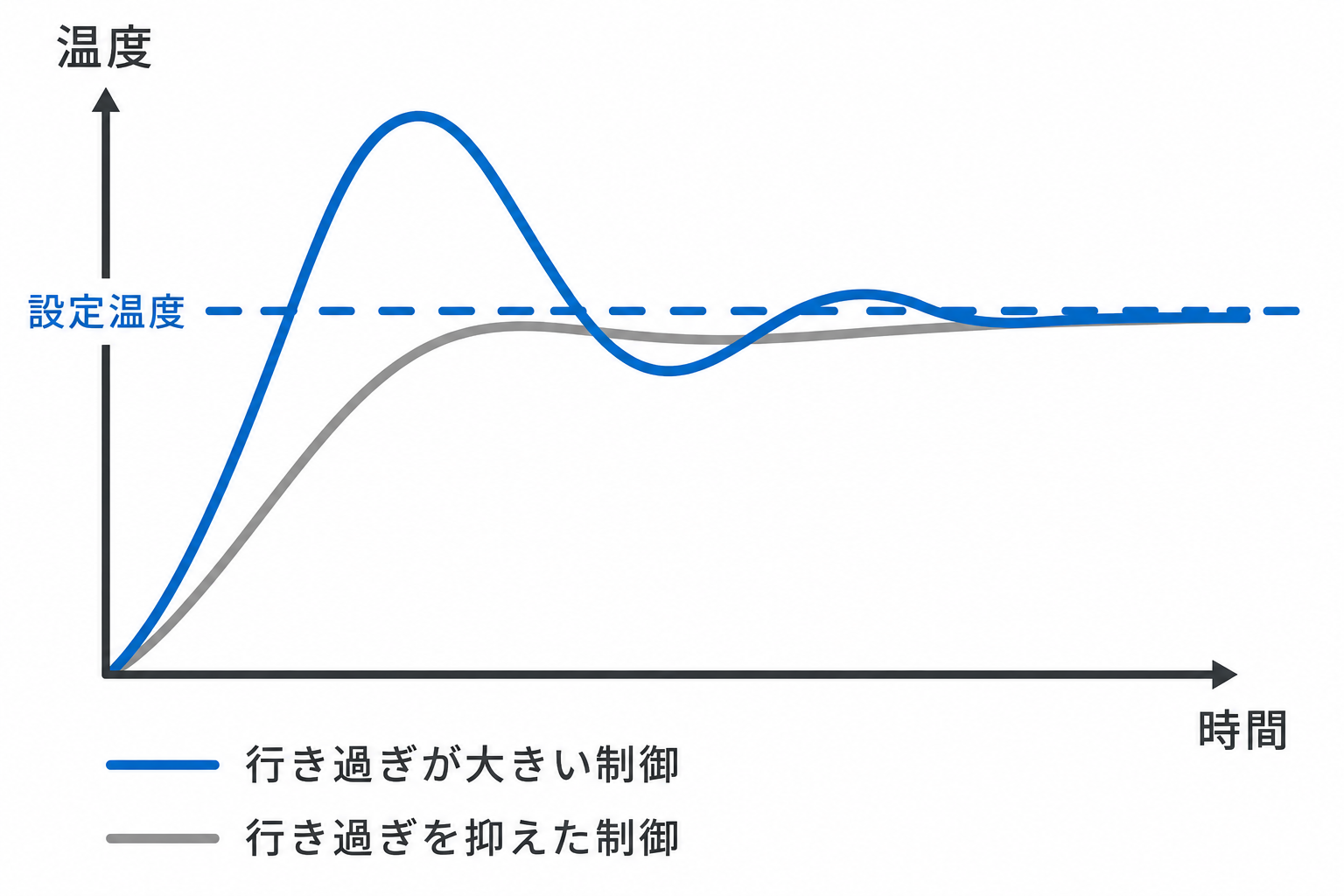

In control, it's important not only to quickly approach the target but also to avoid exceeding the target value by too much. The phenomenon where the temperature exceeds the set value is sometimes called over.

Excessive over can lead to unnecessary thermal history in products and materials, and result in variations in quality. Stable control considers both the speed at which the target is approached and the prevention of overshoot.

5. What is PID control?

PID control is a representative control method widely used in industrial equipment. Even without understanding the detailed formulas, you can easily grasp its three main functions.

PID control is also commonly used in temperature control.

Temperature may not change immediately even when the heater is turned up. Furthermore, the rate at which the temperature rises or falls varies depending on the heat capacity of the object, furnace, tank, piping, etc. Therefore, simply switching the heater on and off may not provide a stable temperature.

PID control uses a combination of the current difference, the cumulative difference, and the rate of change to determine the operation variable, making it useful in many situations where temperature stabilization is desired.

How much knowledge of control and modern control is sufficient?

When studying control engineering, you'll encounter terms like classical control, modern control, robust control, and optimal control. For students, classical control is often learned as an entry point to thinking about control systems using transfer functions and frequency responses, while modern control is often learned as a way of dealing with multiple states using state-space representations and the like.

However, what's important in this article is the overall picture of control. First, understanding the flow of "having a target value," "measuring the current state," "operation based on the difference," and "reconfirming the result" will make it easier to understand when you later study more specialized control theory.

6. Chino's control Experts in Temperature Management

Three challenges in pursuing energy conservation and high efficiency

In temperature control, it's not enough to simply approach the set temperature; it's crucial to achieve stable operation throughout the entire process. At Chino, we prioritize the following three challenges when considering more efficient and environmentally friendly control technologies.

Do plants generate heat? Learning temperature control from nature's mechanisms

Are you familiar with the plant called "Zazenso"? Zazenso is a perennial plant belonging to the Araceae family, and it is known for its ability to generate heat on its own when it blooms in early spring after surviving the harsh winter.

It has been reported that the skunk cabbage (Symplocarpus renifolius) generates heat in its spadix, a part of its flower, even during periods of low ambient temperatures, maintaining a temperature of around 20°C. This property provides a welcome respite when considering control. The ambient temperature changes, the flower temperature changes, and the heat generation is adjusted based on these changes. While this is not exactly the same as PID control in machinery, it allows us to visualize the control concepts of "measuring the state," "observing the change," and "adjusting the required output" using an example from the natural world.

The Birth of Z control

Chino's FAQ introduces Z-control as a unique control algorithm development based on research from Iwate University that analyzing the heat generation mechanism of skunk cabbage. After understanding typical PID control, looking at such application examples reveals that control is not merely theory, but a technology that can lead to energy saving and over suppression in the field.

Temperature control incorporating Z control

Z control is incorporated into Chino products and is utilized in industrial sectors where temperature control is critical. While its effectiveness varies depending on the application and conditions, it is an important technology for suppressing over, ensuring stable control, and saving energy.

7. What is temperature control?

Temperature control is control of bringing the temperature of an object closer to a target value and stabilizing it within the required range. It is one of the important themes in measurement and control that Chino is involved in.

Temperature control consists of sensors, controllers, and operation devices.

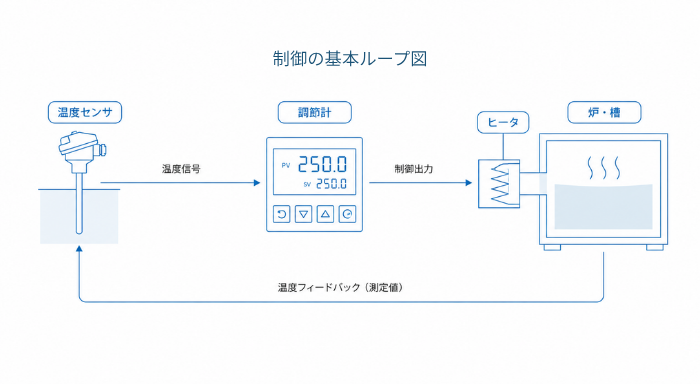

In temperature control, the current temperature is first measured by a temperature sensor. Next, a controller compares the current temperature with the set temperature and determines the necessary operation input. Then, the temperature is adjusted by operation devices such as heaters, coolers, thyristor regulators, and valves.

Thus, temperature control relies on the coordinated efforts of measuring instruments, decision-making instruments, and operation instruments. It is important to consider the entire combination, not just any single instrument.

Common challenges in temperature control

Stable temperature control also requires high-quality measurement.

control is based on measured values. Therefore, accurately measuring temperature is a prerequisite for stable temperature control. Checking the sensor type, installation location, responsiveness, measurement range, and calibration status can help improve the reliability of control.

In temperature management, it is important to think of measurement, recording, monitoring, control, and calibration as a continuous workflow, without separating them.

8. Why control is important in industrial settings

control is emphasized in industrial settings not simply to automate machine operation, but to stabilize quality, improve repeatability, and ensure safe and efficient operation.

9. Chino's approach to control and temperature loops

Chino has organized the entire process of measuring, recording, monitoring, control, and calibrating temperature into a framework for solving on-site problems.

To ensure the stability of temperature control, it is not only a matter of the equipment control, but also how temperature is measured, how the measurements are recorded and monitored, and how the reliability of the measurements is maintained. control It is important to consider the entire process—from measurement to calibration—rather than viewing it in isolation stand alone.

10. Things to check when considering temperature control

When considering temperature control, it's helpful to organize not only the names of the equipment but also the objects you want to control and the operating conditions, as this makes it easier to determine the necessary configuration.
