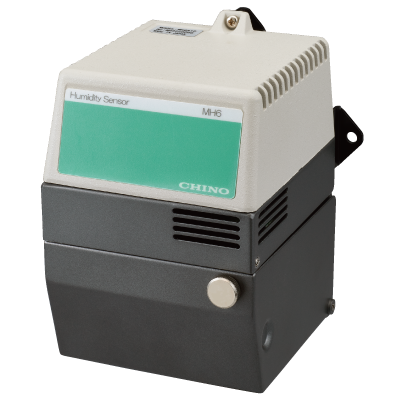

The MH6 series is a ventilation type hygrometer/saturation differential meter that uses a new principle, development thermal conduction humidity sensor. Thermal conduction humidity sensors do not dew condensation when energization on, and are not easily affected by chemicals. Even in high humidity environments, the measured value does not saturate, and accurate measurement is possible with a high-speed response. There is also a model that can directly measure the humidity parameter "saturation differential," which is important for crop cultivation environments.
Product name | Specifications | Models | |
---|---|---|---|
Main unit | Thermal Conduction Hygrometer | Humidity/Temperature 4-20mA output | MH6A10 |
Humidity 4-20mA, Temperature Pt3 wire | MH6B10 | ||
Thermal Conduction Saturation Gauge | Saturation deficit/temperature 4 to 20mA output | MH6A20 | |
Saturation deficit 4 to 20mA, temperature Pt3 wire | MH6B20 |
Models | MH6A10 | MH6A20 | MH6B10 | MH6B20 | |
---|---|---|---|---|---|
Humidity | Sensors | Heat conduction type | |||
output | Relative humidity | Satirability | Relative humidity | Satirability | |
Measurement range | 0~100%rh | 0-48g/ m3 | 0~100%rh | 0-48g/ m3 | |
Output Signal | 4 to 20mA DC (within the measurement range) | ||||
load resistance | 500 Ω or less | ||||
temperature | Sensors | Thermistor | Platinum resistance thermometer Pt100 | ||
Measurement range | 0~60℃ | ||||
Output Signal | 4 to 20mA DC (for 0 to 60°C) | Pt100Ω・3-wire system | |||
load resistance | 500 Ω or less | - | |||
Sensor compatibility | Compatibility | ||||
Operating temperature limit | 0~60℃ | ||||
Power supply voltage | 24V DC±10% | ||||
Weight | Approx. 1.3kg |
