Heat-resistant thermal image measurement CPA-L25HT  (Japan Only)

Contact Us

The heat-resistant thermal image measurement CPA-L25HT is a thermography device that can be installed in a thermostatic chamber and has a camera body that is heat-resistant up to an environmental temperature of 150°C. It supports reliability evaluation tests of electronic components, including AEC standard * tests.

Thermography installed in a constant temperature layer

  • Can be used in a thermostatic chamber at 150℃
  • Thermal imaging data can be acquired continuously to analyzing temperature distribution.
  • Real-time visualization of heat generation in electronic components speeds up product improvements and performance enhancements
  • Data collection of heat generation characteristic during environmental temperature verification of defective parts in the quality assurance department

    • *AEC (Automotive Electronics Council): Global reliability standard for automotive electronic components established by the Automotive Electronics Council.

二次元バーコード

If you use it from a smartphone, you can use the AR function.
Press the "Start AR" button to start the AR function.

*This model is created based on a 3D CAD drawing.
Actual product may vary.

Specifications

Temperature Measurement Range 0 to 300°C (Accuracy guaranteed: 50°C or higher)
Temperature indication accuracy ±2% of the measured value or ±2℃, whichever is greater
resolution 320 x 240 (76,800 pixel)
Field of view angle Horizontal 25° x Vertical 19°
Operating temperature 25～150℃
Measured distance 0.3m to ∞ (Accuracy guaranteed: 0.5m or more)
Frame rate 60Hz(*When connected to a controller, the frequency is 30Hz.)
Power supply 24V DC (DC power supply for 100-240V AC included)
Weight 約2.5kg

Download Documents

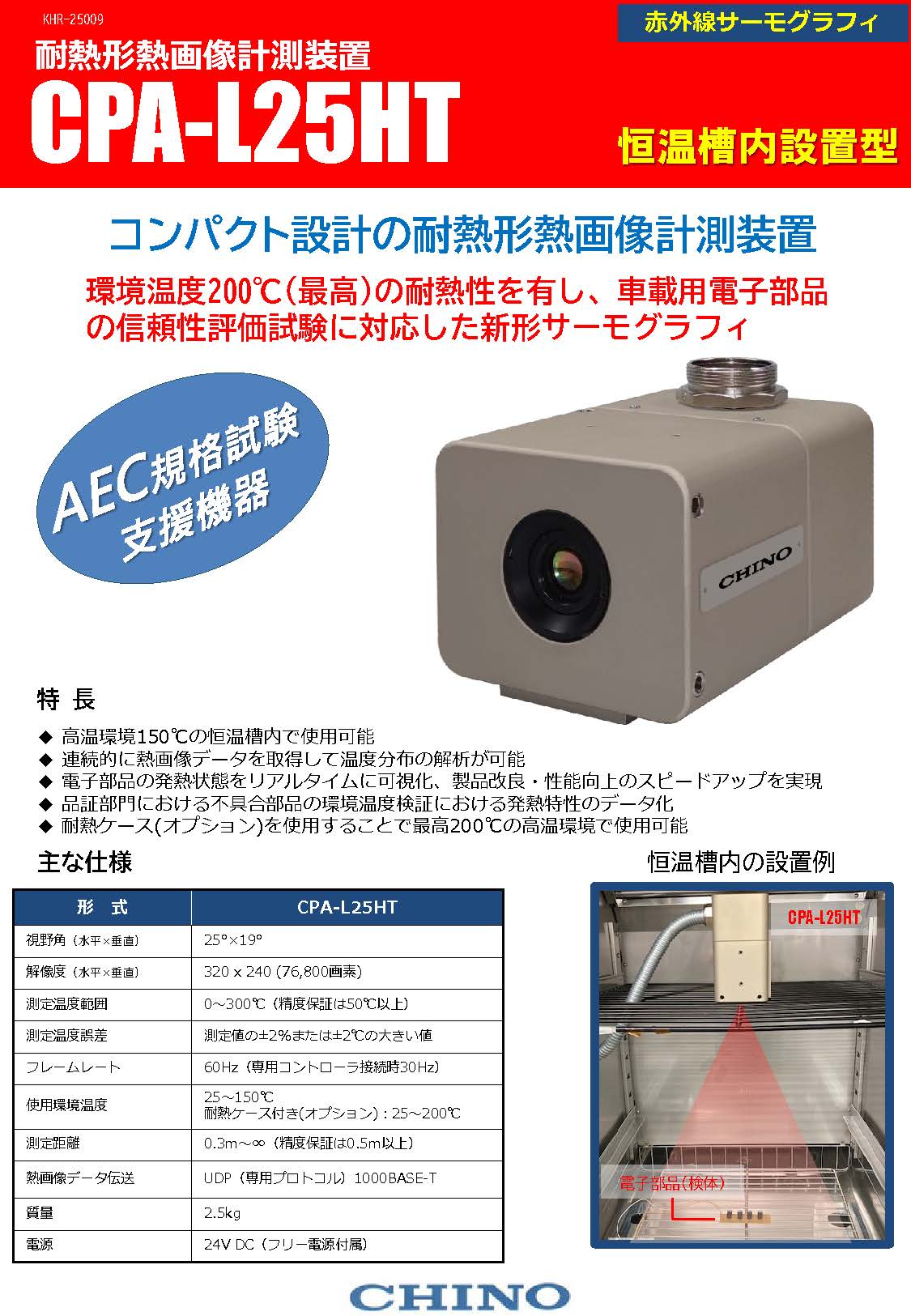

Catalog

Specification Sheet (PS Sheet)

Specification Sheet (PS Sheet) (English)

Instruction Manual

*Downloading materials is a members-only service.
*If you wish to download, please login as a member and click "Download."

Instruction Manual (English)

*Downloading materials is a members-only service.
*If you wish to download, please login as a member and click "Download."

Software

CAD Data

*Downloading materials is a members-only service.
*If you wish to download, please login as a member and click "Download."

Application Examples

The surface temperature distribution of aluminum electrolytic capacitors under test can be measured in real time without contact.
