Smart Card Logger MR532N (Japan Only)

The Smart Card Logger MR532N records data measured with a T thermocouple.
Temperature data recorded by the smart card logger can be easily transfer by simply holding a smartphone over the device via NFC. Recorded data can also be easily checked.
This single device enables smooth temperature control on-site and streamlines record-keeping.

Check recorded temperature data by simply holding your smartphone over the device

Simply hold your smartphone over the thermocouple (T) to obtain temperature measurement data.
Alarms can be set via a smartphone app, and when an alarm occurs, the LED on the logger flash display
Recording settings can be configured via a smartphone app
Improved workability of data logging (collects 2000 data points in approximately 10 seconds)
Longer battery life (2000 hours depending on conditions)
Recorded data is retained even if the battery runs out
Measurement data display as a report in models and PDF models.

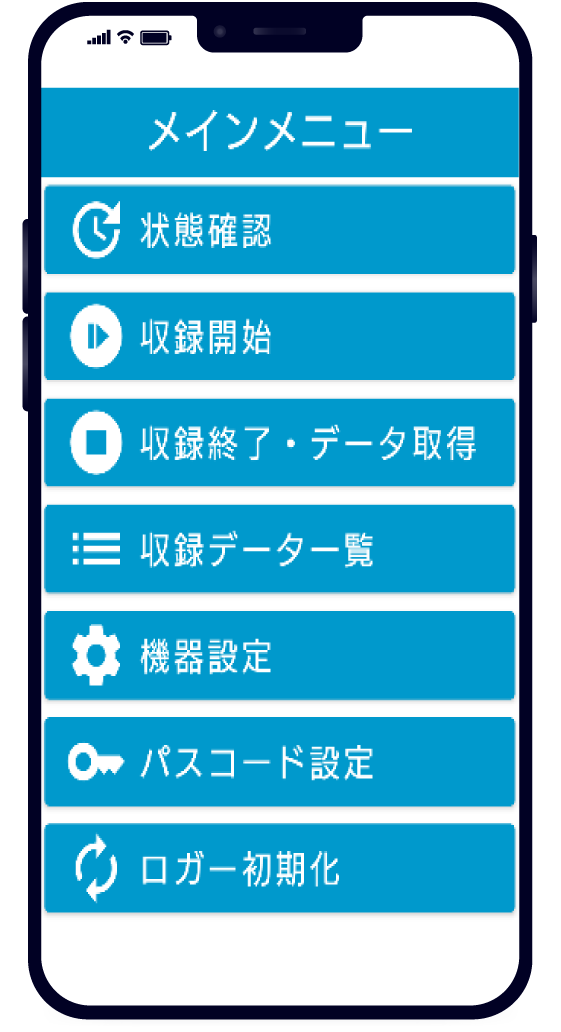

Easy-operation smartphone app

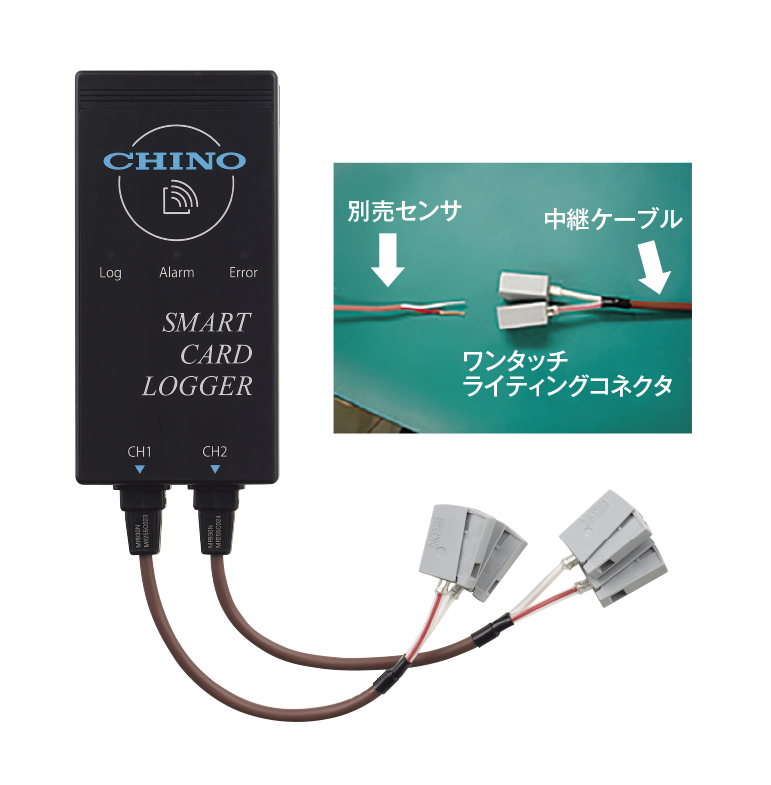

Smart Card Logger

An app that allows same-day recording, scheduled recording, and notification settings

Specifications

General specifications

Input sensor type	T thermocouple *Sold separately
Number of input points	2 channel /unit
Temperature Sensor Measurement Range	－50℃～150℃
Main unit operating temperature range	－10℃～50℃
Humidity range for use with the main unit	10%RH to 80%RH (no dew condensation)
Main body waterproof	IP64
Power supply	Two AAA alkaline batteries
Battery life	Approximately 2000 hours (25°C environment, data recording interval 10 minutes)
accuracy ratings (ambient temperature 25°C)	±(0.1% of reading + 0.3°C)
Reference contact compensation accuracy	±0.4℃ (ambient temperature 15 to 35℃) ±0.7℃ (ambient temperature -10 to 15℃/35 to 50℃)
Number of recorded data	10,000 data/CH
Data recording interval	1 minute to 24 hours (default 10 minutes)
External dimensions	W54×H110×D20.4mm

Catalog

Smart Card Logger MR532N (Japan Only)

ファイルサイズ3MB

Temperature data recorded by the MR532N smart card logger can be checked and managed immediately on a smartphone. This single device can easily and reliably perform everything from temperature management to recording, improving the efficiency of on-site work.

Specification Sheet (PS Sheet)

Specification Sheet (PS Sheet) (English)

Instruction Manual

*Downloading materials is a members-only service.
*If you wish to download, please login as a member and click "Download."

Instruction Manual (English)

*Downloading materials is a members-only service.
*If you wish to download, please login as a member and click "Download."

Software

CAD Data

*Downloading materials is a members-only service.
*If you wish to download, please login as a member and click "Download."
