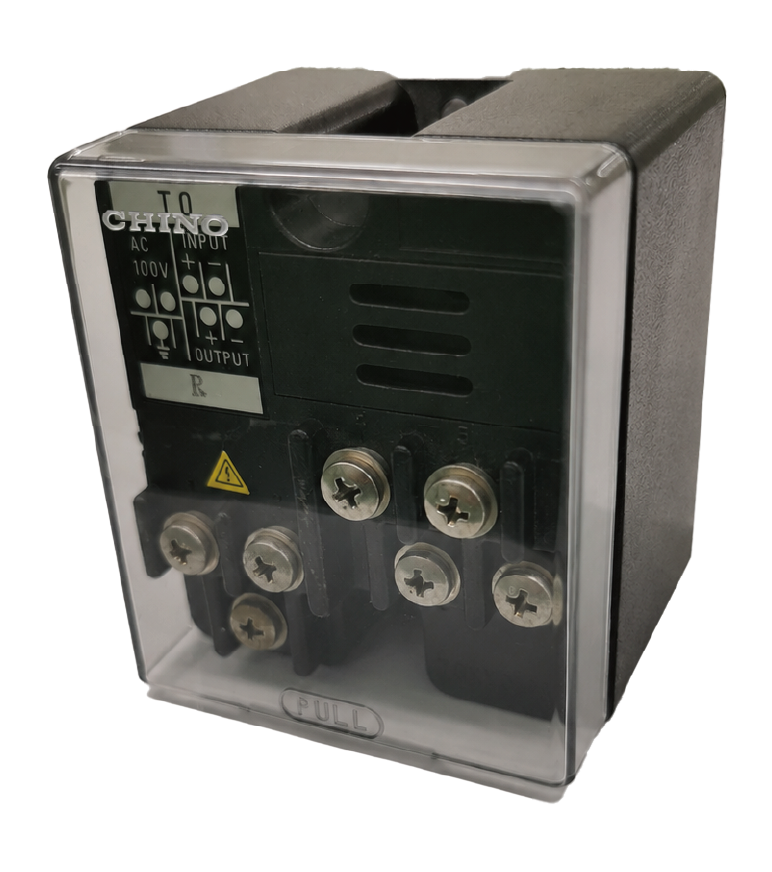

Electronic reference junction temperature compensator TO

TO is an electronic reference junction temperature compensator that inserts a temperature-sensitive resistance into a bridge circuit to generate a thermoelectric voltage equivalent to the reference junction temperature (terminal temperature of this device).

Electronic type is easier to handle than ice-cooled type.

It can be used as a thermocouple reference junction compensator or for calibrating instrument scale.
Smaller and lighter (approximately 250g) design compared to ice-cooled systems.

Specifications

Number of input points	1点
Thermocouple Type	K,E,J,T,N,R,S,C,PlatinelⅡ
Reference temperature	0℃
Compensation temperature range	－10～60℃
Accuracy	±0.5℃(K,J,T,E,N,PlatinelⅡ) ±1.0℃ (R,S,C)
Preparation time	1時間
Internal resistance	Approximately 10 Ω
Rated power supply voltage	100V AC 50/60Hz
Allowable voltage fluctuation	-10 to 10% of the rated value
Weight	約250g

For other specifications, please refer to specifications document.
