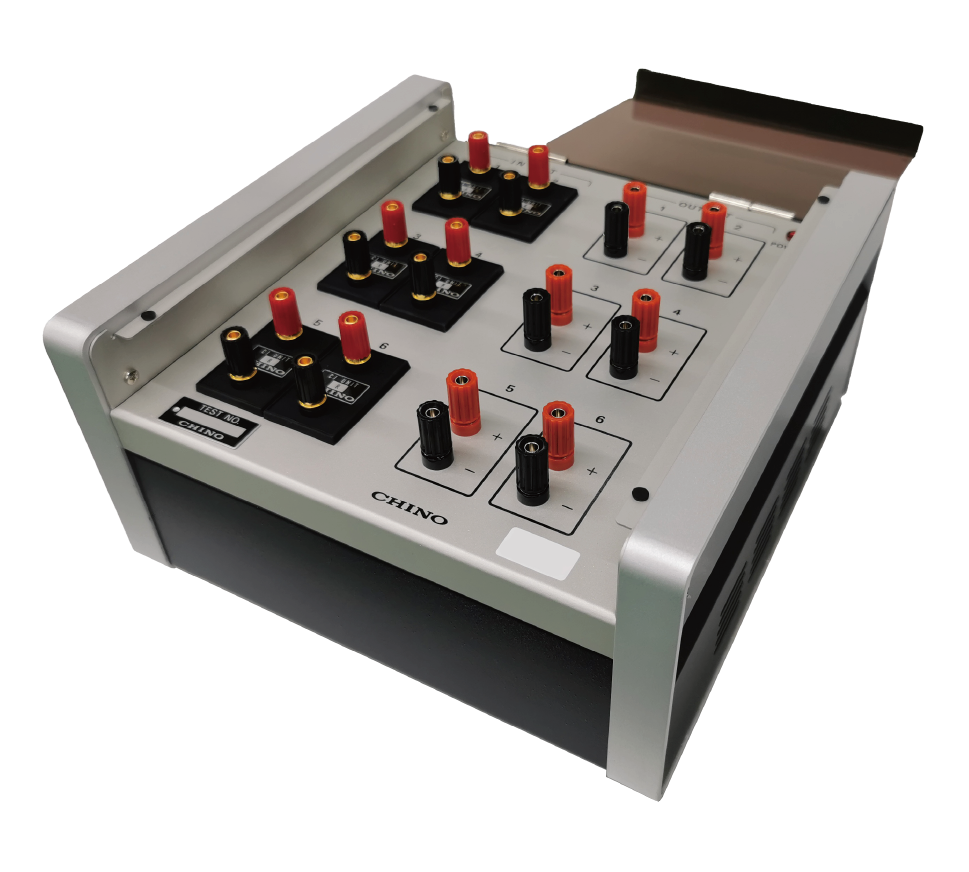

Electronic reference junction temperature compensator HT

The HT is a multi points point electronic reference junction temperature compensator that inserts a temperature-sensitive resistance into a bridge circuit to generate a thermoelectric voltage equivalent to the reference junction temperature (terminal temperature of this device). It has been expanded to two types: 6-point and 30-point.
We also offer specifications of high-precision calibration model specifically designed for calibrating thermocouples.

Multi points type that can combine multiple types of thermocouples.

It can be used as a thermocouple reference junction compensator or for calibrating instrument scale.
Calibration is possible by combining multiple types of thermocouples.

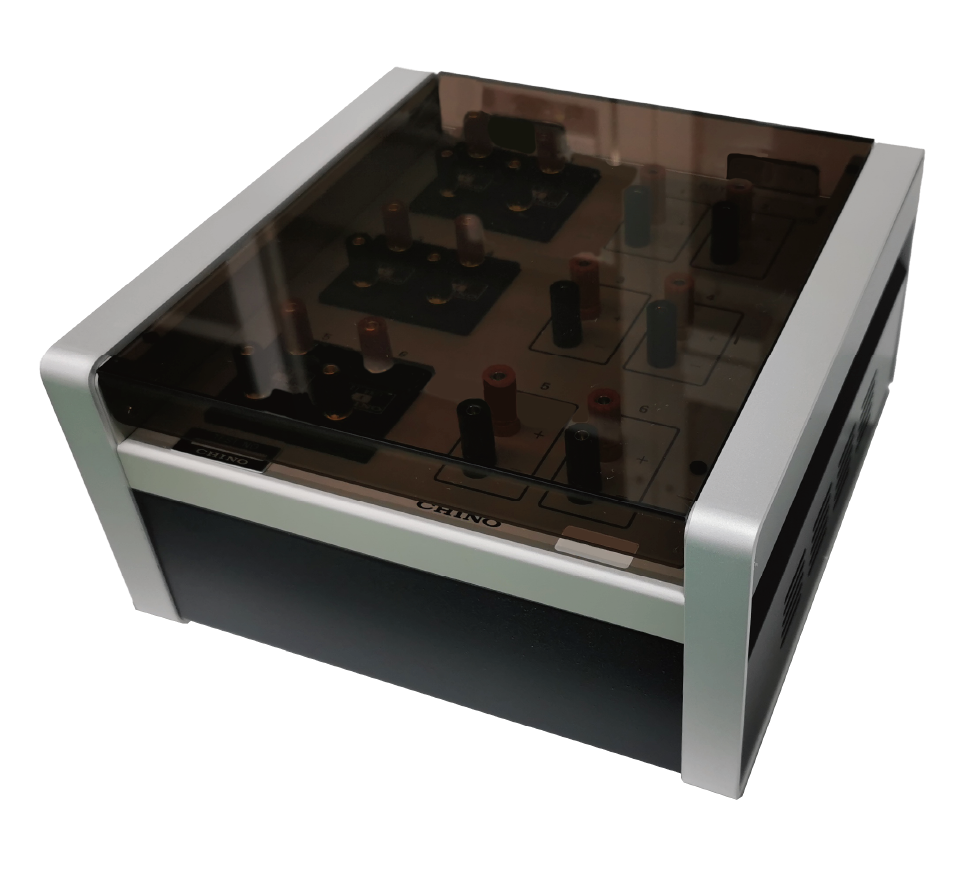

We offer three types of configurations: desktop, wall-mounted, and rack-mounted.
In addition to the standard model (accuracy ±0.5℃), a calibration device specifications suitable for calibration testing (accuracy ±0.2℃) is also available.

Specifications

Type (models)	General type (HT□□□－□)		Calibration system type (HT□□□－□K)
Number of input points	6点	30点	6点	30点
Thermocouple Type	K,E,J,T,N,R,S,C,PlatinelⅡ
Reference temperature	0℃
Compensation temperature range	－10～60℃		18～28℃
Accuracy	±0.5℃(K,J,T,E,N,PlatinelⅡ) ±1.0℃ (R,S,C)		±0.2℃(K,J,T,E,N,PlatinelⅡ) ±0.5℃ (R,S,C)
Preparation time	1時間		1 hour (5 hours for R and S)
Internal resistance	Approximately 10 Ω
insulation resistance	Thermocouple resistance between each wire and between ground terminal: 500V DC 20MΩ or more Between power terminal and ground terminal: 1000V DC 20MΩ or more
Shape	Desktop type, rack-mount type, wall-mount type
Rated power supply voltage	100V AC 50/60Hz
Allowable voltage fluctuation	-10 to 10% of the rated value
Power consumption	約1VA	約4VA	約1VA	約4VA
Weight	約2.5kg	約5kg	約2.5kg	約5kg

For other specifications, please refer to specifications document.
