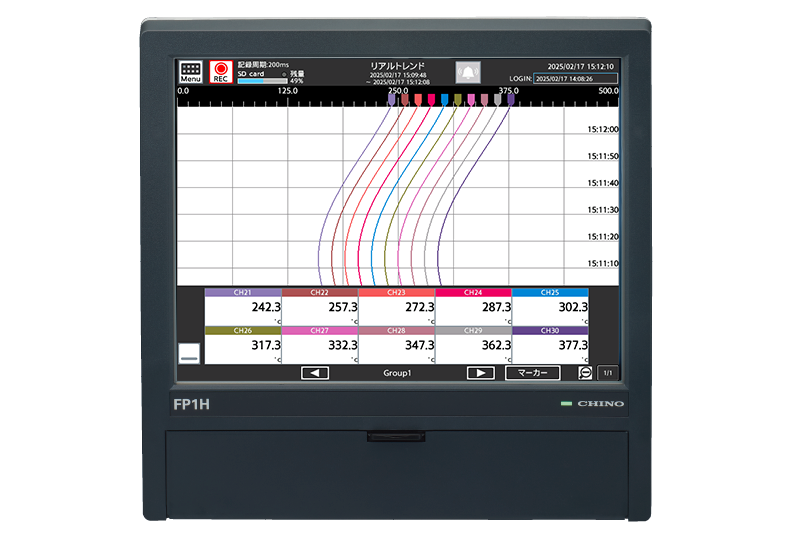

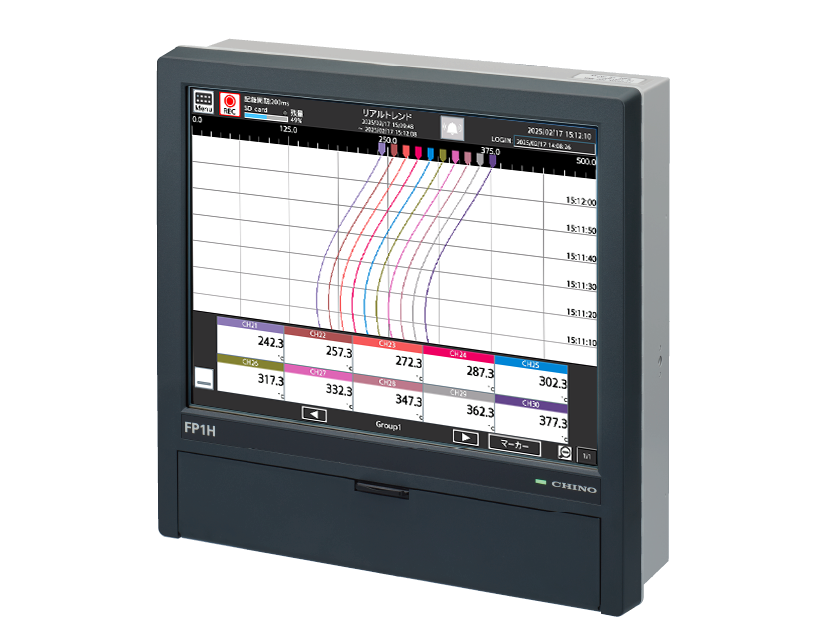

Panel recorder FP

Features

Compatible models

• Data Logger FE (Japan Only)
• Wireless data logger MD8000
• Instrumentation module SB
• hybrid memory recorder (Pen Format) AL4000
• hybrid memory recorder (dot printing type Format) AL4000
• hybrid memory recorder (Pen Format) AH4000
• hybrid memory recorder (dot printing type Format) AH4000
• High-performance graphic recorder KR2-H
• High-performance graphic recorder KR3-H
• Graphic recorder (PDF chart) KR2D00
• Graphic recorder (PDF chart) KR3D00
• Graphic recorder KR2S00
• Graphic recorder KR3S00
• Graphic recorder KR2000
• Graphic recorder KR3000

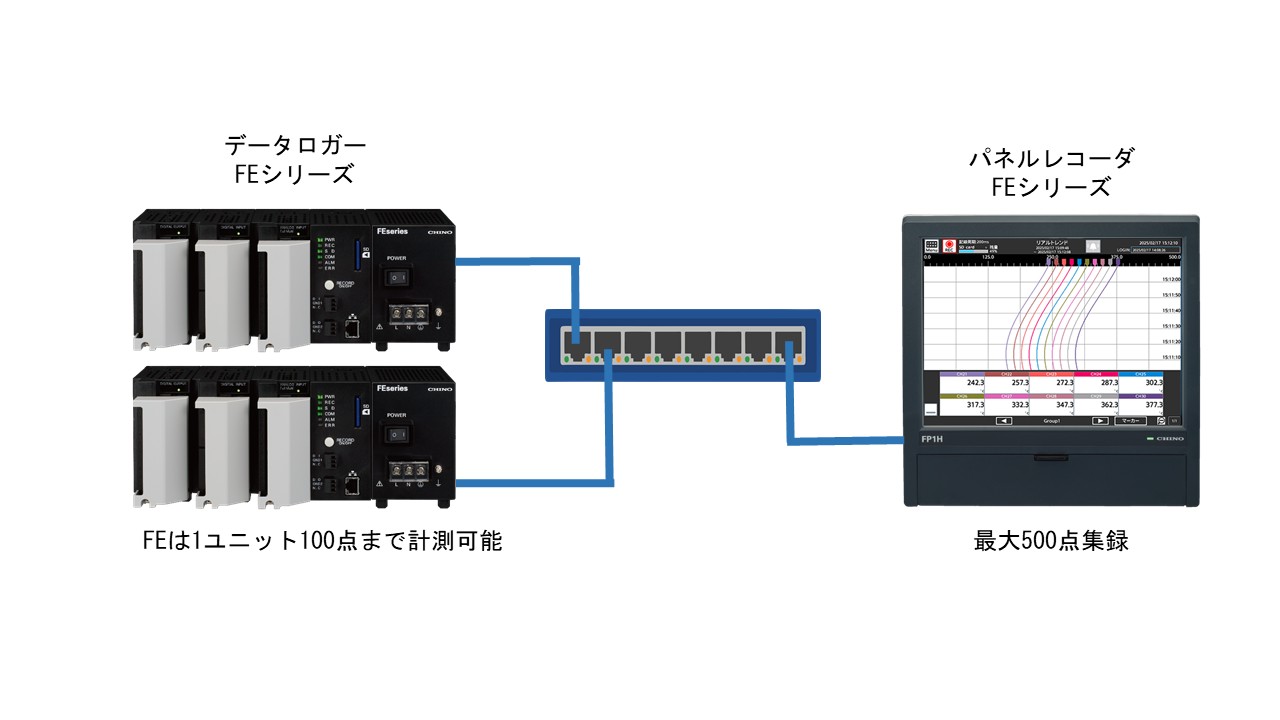

Up to 500 points can be recorded.

The data logger FE can input and record up to 100 points per unit. By LAN wiring multiple FEs unit and FPs through the hub, up to 500 points can be monitored with a single unit.

Distributed placement

If the site and the installation location of the panel recorder FP are far apart, multi points data can be monitored without having to run long-distance wiring for signals such as thermocouples.

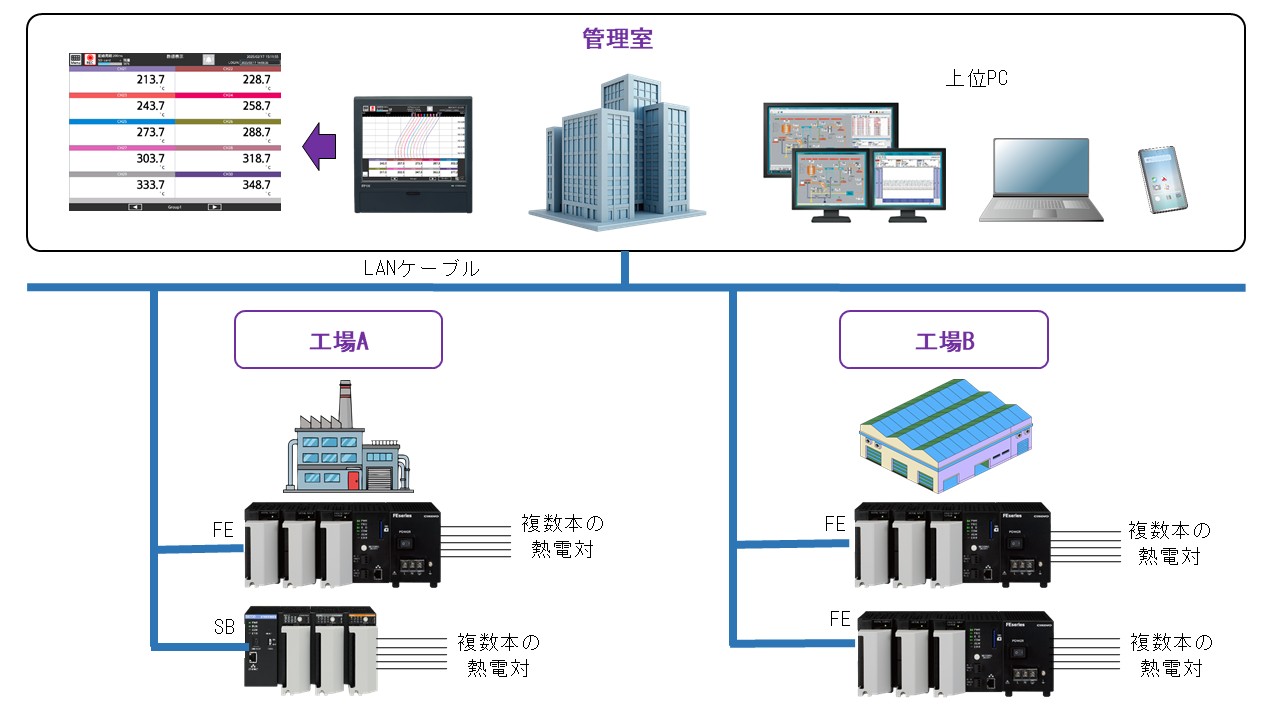

In the example below, there are numerous temperature measurement points in both Factory A and Factory B, with factory-specific equipment limited to data loggers and modular controllers. All measurement data from Factory A and Factory B can be monitored via Ethernet from each data logger and modular controller to a single panel recorder in the office. In other words, the only long-distance wiring required is LAN cable.
