Three-phase thyristor regulator JW series

The JW series is a three-phase control thyristor regulator that is small, lightweight, and capable of high-density instrumentation. The phase control method is available in voltage, current, and power feedback control types, as well as a type without feedback control, allowing you to select the model that best suits characteristic of your heater.

Compact and lightweight. high performance specifications that pursue reliability and control.

Compact integrated structure
Setting communication unit available
Comes standard with disconnection alarm and current limiter
External transformer specifications available
Adopts 6-arm control

Other features

It is also possible to communicate with high-order, allowing remote operation and data monitoring.

Specifications

Model List

control Method	Fast acting fuse	Models
Phase control /voltage feedback method/frequency division control method	Built-in	JW20030VA006
Phase control / current feedback method/frequency division control method	Built-in	JW20030AA006
Phase control /power feedback method/frequency division control method	Built-in	JW20030WA006
Phase control, no feedback /frequency division control method	Built-in	JW20030NA006
Frequency division control method	Built-in	JW20030ZA006
Phase control /voltage feedback method/frequency division control method	None	JW20030VN006
Phase control / current feedback method/frequency division control method	None	JW20030AN006
Phase control /power feedback method/frequency division control method	None	JW20030WN006
Phase control, no feedback /frequency division control method	None	JW20030NN006
Frequency division control method	None	JW20030ZN006

* Power supply voltage: 200V, rated current: 30A

Specifications

Number of phases	Three Phase
Rated voltage	200V AC (selectable by 200V/220V/240V switch) 400V AC (selectable by 380V/400V/440V switch) 460V AC 480V AC designate either one (main circuit power supply and control circuit power supply are energization) *External transformer specifications available specifications 400V
Rated current	10A, 20A, 30A, 50A, 75A, 100A, 150A, 200A, designate 250A, 300A, 400A, or 500A
Rated Frequency	50/60Hz (auto selection)
control Method	Phase control method, frequency division control method
Feedback Method	Voltage, current and power feedback
External Setting Input	Volume signal (10kΩ recommended)
External contact Input	External signal: Non-voltage contact or open collector (remote contact capacity 5mA 5V DC or more)
External CT input	0 to 5A AC for rated current
Operating temperature limit	－10～55℃
Operating humidity range	30 to 90% RH (no dew condensation
Weight and dimensions	10A, 20A	Approx. 5kg	H325×W100×D190mm
	30A, 50A	Approx. 8kg	H325×W200×D200mm
	75A, 100A	約13kg	H325×W288×D220mm
	150A to 250A	約22kg	H325×W420×D240mm
	300A to 500A	約36kg	H495×W420×D240mm
Installation Method	Panel Mounting

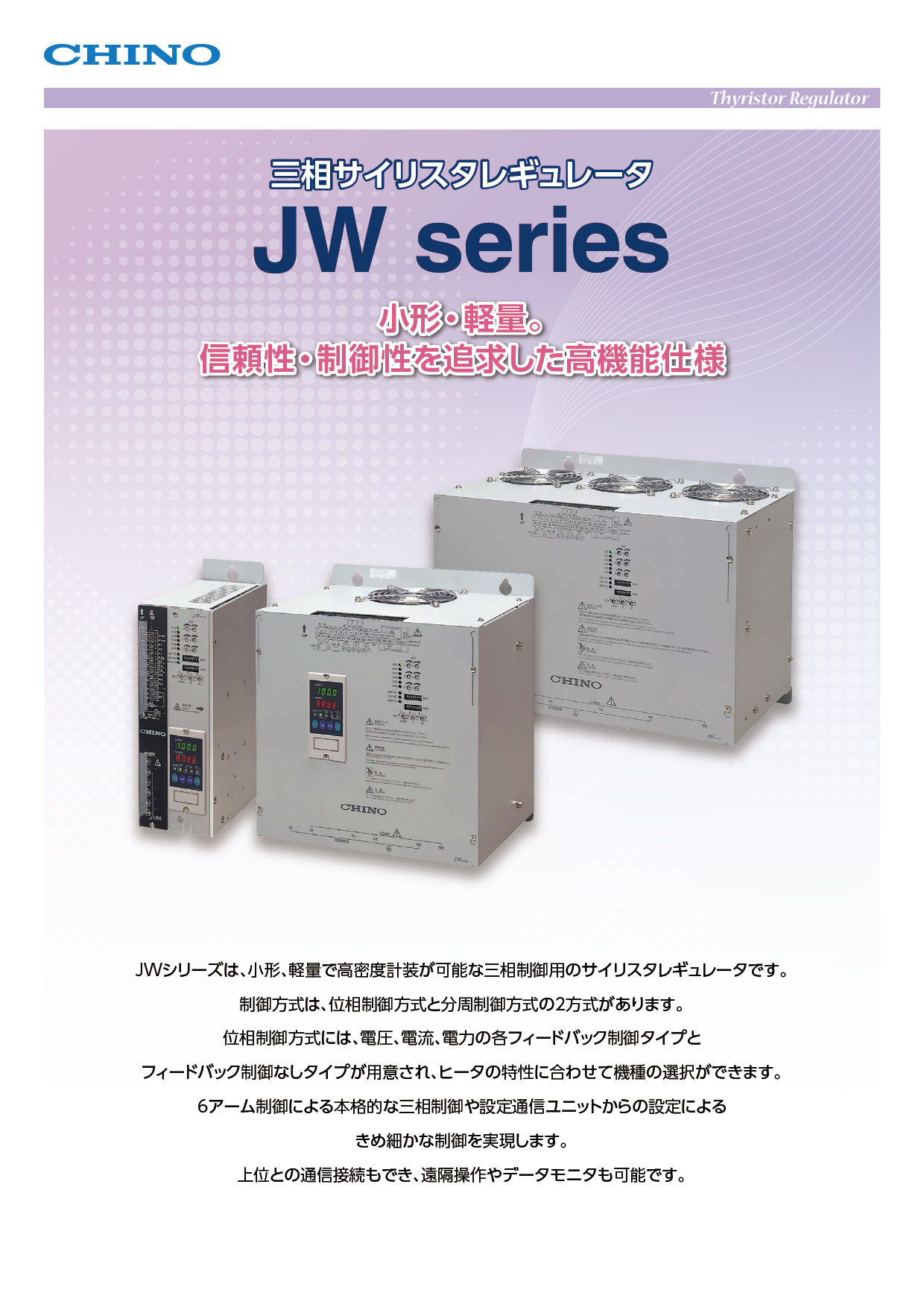

Catalog
